Kreg pocket hole jig

2725
10
Kreg pocket hole jig

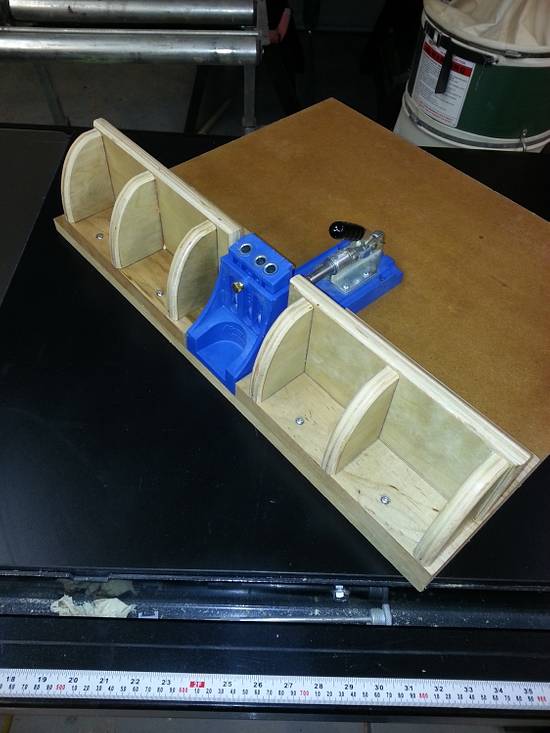

I added extra support to my kreg 3 pocket hole. I milled my wood to the exact thickness of the base of the K3 & as wide as the opening of the clamping area. Then i gave it a back support.

Jeff Vandenberg aka "Woodsconsin"

birch plywood kreg system jigs table saw jointer thickness planner drill hand tools wood glue air compressor pinner screws birch plywood

10 Comments

Shin commented almost 10 years ago

Interesting concept. Looks like it works great.

Keith "Shin" Schindler

Jeff Vandenberg commented almost 10 years ago

It does work great. The thing is thers no balancing act with large cabinet sides. Everything is on the same plane as the kreg unit.

Jeff Vandenberg aka "Woodsconsin"

Thorreain commented almost 10 years ago

Sweet, I think I’ll try something similar.

CHRIS, Charlottetown PEI Canada. Anytime you can repurpose, reuse, or recycle, everyone wins!

Jeff Vandenberg commented almost 10 years ago

The one thing i forgot about was a place to put the drill bit and driver bit. Im going to see if i can add a lid in between the rear supports. Just something for you to add to your design.

Jeff Vandenberg aka "Woodsconsin"

Thorreain commented almost 10 years ago

Heres my attempt. I tried it on a few pieces of large plywood, it works well, thanks for the tip.

CHRIS, Charlottetown PEI Canada. Anytime you can repurpose, reuse, or recycle, everyone wins!

Thorreain commented almost 10 years ago

Great tool by the way

CHRIS, Charlottetown PEI Canada. Anytime you can repurpose, reuse, or recycle, everyone wins!

Jeff Vandenberg commented almost 10 years ago

Very cool. Looks great. Hope you don’t loose anything out of them pocket holes. Lol

Jeff Vandenberg aka "Woodsconsin"

a1jim commented over 9 years ago

Good idea Jeff,good design.

woodworking classes, custom furniture maker

Jeff Vandenberg commented over 9 years ago

Thank you a1jim

Jeff Vandenberg aka "Woodsconsin"

Josyjo commented over 8 years ago

Brilliant idea on the jig support…as I am slowly purchacing items for my Girl cave,this is one of a kind jig joinery product. My next attempt would be some sleds… W2g Jeff Vandenberg
