High contrast box

455
22

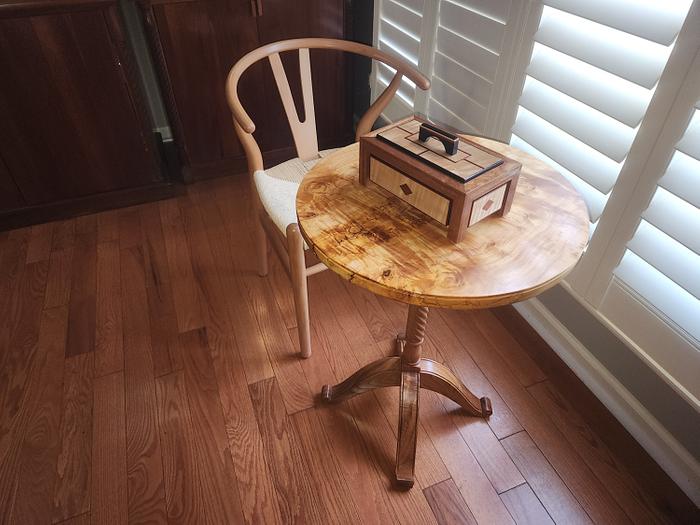

Saw a similar design some time ago and gave it a try.

TimV, "The understanding eye sees the maker's fingerprints, they are evident in every detail, leave Fingerprints." James Krenov

22 Comments

Excellent looking box, nice work.

Ron

Great work Tim. I like how you make the frame. The 5th photo. Is the frame jointed or just glued?

Dr. Quackner

Beautifully done!  Could you share a bit about the wood types and finish?
beautiful style and awesome wood choices GR8 JOB 😍😎👍

*TONY ** Reinholds* ALWAYS REMEMBER TO HAVE FUN

How did you go about the inlays? Specifically the diamonds.

Ryan/// ~sigh~ I blew up another bowl. Moke told me "I made the inside bigger than the outside".

excellent work as usual !

working with my hands is a joy,it gives me a sense of fulfillment,somthing so many seek and so few find.-SAM MALOOF.

Sharp looking pattern! Will look great on a mantle or other place on display.
Cool. Nice Oriental feel the design. Beautiful
Wood used is mahogany for frame, maple sides black is ebony, red is blood wood.  Diamond inlay cut with scroll saw.
Thanks all

TimV, "The understanding eye sees the maker's fingerprints, they are evident in every detail, leave Fingerprints." James Krenov

I can't find anything about it to not like  !   I totally love the frame work  -
I would really, really like to see a photo of the 'box' that fits or how does it fit, attach to the leg frame.  Please?
Looks great, well done. By the looks of the comments you may have a BLOG instead of just a posting. I would also like to know about the frames construction, and the woods used would be fun to know. I think the biggest thing on my mind was what method of veneering are we seeing? Kenny's recent post about veneering a project was a good starter for a beginner, adding to it would be informative to all.


This is bottom view, the sides are cut to fit and glued to the legs and top frame.  Bottom is dado fit cut around legs.   Top left to stand proud.  The sides are flush to inside of frames.  No fancy joinery, just need good fit.

TimV, "The understanding eye sees the maker's fingerprints, they are evident in every detail, leave Fingerprints." James Krenov

View shows trial fit before cutting diamond inlay, each side is 4 pieces, a substrate  with black veneer (dyed popular), and a thin maple piece with thin blood wood stringing on sides, ref piece on lower left of pic.  Top is solid with ebony strips on sides, blood wood stringing cut with router and chisel.  Handle is ebony with strips of other woods.  All basic stuff really!  Snug fit is critical!

TimV, "The understanding eye sees the maker's fingerprints, they are evident in every detail, leave Fingerprints." James Krenov

It came out great. Like others I was wondering if the frame number 5 photo is glued of did you use joinery?
Frame 3 way miter cuts are just glued, need accurate cuts to fit well and tricky glue up. I used a drop of CYA with wood glue and held against a square to position parts and tape to hold in place.  The CYA holds well untill wood glue sets.  Probably not strong for a larger piece but this was my first attempt.  I made a couple test parts first and could not separate the glued up joint by hand.
And question about the diamond inlay,  I used a double bevel cutting method on scroll saw if you are familiar with that, to get tight fit.  The maple and bloodwood diamond are about 1/8 inch thick.

TimV, "The understanding eye sees the maker's fingerprints, they are evident in every detail, leave Fingerprints." James Krenov

Great work and explanation. The joints are very complicated and you did a perfect job on them.  I’m sure that they being glued to the rest of the parts will make it extra strong.
Thank you for the follow up on assembly.
