I posted this jig on another woodworking site and it has been very popular. So thought I’d share it here as well.
I had been using a jig I cobbled together and I couldn’t have gotten rid of it soon enough. This is a pleasure to use.

I got inspiration to build this from these two guys from Lumberjocks.com.
Smitty22
http://lumberjocks.com/projects/59266
Brad_Nailer
http://lumberjocks.com/Brad_Nailor/blog/22095

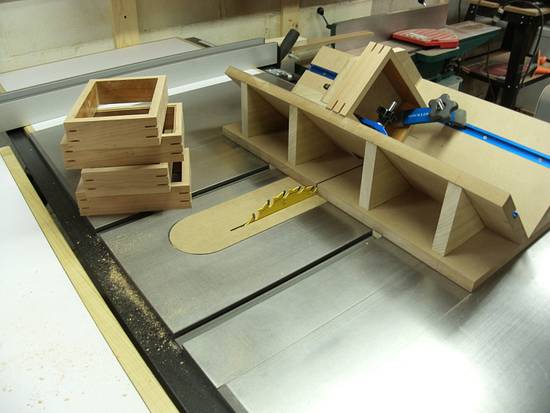

Constructed of 3/4” MDF, 1/4” MDF, 3/4” plywood and 4/4 poplar scraps. The construction is pretty typical of most sleds. I did however incorporate removable and replaceable zero clearance inserts made from 1/4” MDF. The “T” tracks and accessories are from Rockler Woodworking. I’ve been using this jig for quite sometime and one thing I can think of to further add to it’s functionality is a measurement tape. So at some point I will add an adhesive measuring tape so I can dial in on exact measurements and repeat settings.
