2nd Moulding Plane Box

351
30
So, I built another box to hold my custom moulding planes. It's made out of Pine. My first one only holds 8 planes. I designed it to fit nicely in my shop upper cabinets.

I now have made 11 custom moulding planes. Half of them are various sizes of Hollow and Round moulding planes. The rest are Beading and Ogee Moulding planes and one rabbet moulding plane.

Before I get into here, I want to mention that this entire box was done with hand tools only. All of it. From cutting up the stock to the finished completed box.

I started by making a handcut dovetailed box with feet. Just like the first one.



After it was assembled, I started making the lid. It is made up of a center piece framed by custom moulding that I made with my various moulding planes. This is different than the first one but similar. The first one had a Shou Sugi Ban center and the custom moulding was different.

The mitered frame is 3/4" thick x 1-3/4" wide. I made it using three of my moulding planes. The Ogee, Hollow, and Side Bead.
Here is clamping the frame up in process.



Here’s a corner detail of the  handcut moulding.



Next, I glued in the mid section. After this was done, I installed the brass hinges for lid and body.
I also added a centering pin for the lid. This will always center the lid to the box even if there is misalignment.

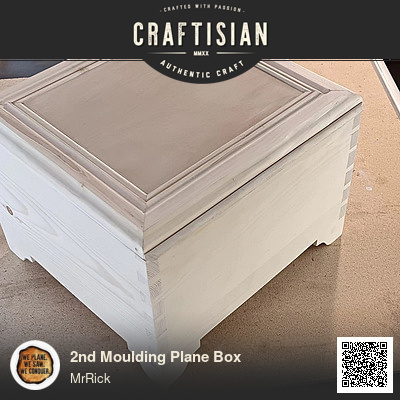

Here are views of the completed box. Note in the first photo the indiscreet dowel I added for the handle (zoom in). I did this with my first moulding plane box and it looks nice.




Now the only thing left to do is apply a finish. I was going to blonde shellac it but want it to remain the way it currently looks. I was thinking of spray lacquer. Any suggestions?

Thanks for looking!

Cheers!
MrRick



30 Comments

Nice idea with having the box details derived from the contents!
Nice box and beautiful dovetails. Why do you need a pin to align the lid when you close it. Sloppy hinges? Get so cheap Splinter hinges. 😏 A rare earth magnet would work. As for spray lacquer, that sounds good.

Dr. Quackner

Fine tools deserve a fine home.    Excellent joints of course.

Ron

nice tools need nice storage boxes. well done rick.

working with my hands is a joy,it gives me a sense of fulfillment,somthing so many seek and so few find.-SAM MALOOF.

Thanks SplinterGroup!

Thanks DrQuackner..... I'm pretty picky about installing hinges but they are not Brusso and have a little side to side play. I peened the ends a little to tighten up but as well have done this centering pin technique to always ensure centering and flush alignment of lid to box. Even in the event wood expansion and contraction occurs.
Thanks 987Ron and Pottz! Any comments about finish? I was thinking of lacquer.
Great box and amazing dovetails.
Very nice work, used the molding planes for lid details, and the all hand work makes this the most appropriate storage box for the planes. Nice looking dovetails too.
lacquer will do it.

working with my hands is a joy,it gives me a sense of fulfillment,somthing so many seek and so few find.-SAM MALOOF.

Wow - very nice storage!
Nice!

Ryan/// ~sigh~ I blew up another bowl. Moke told me "I made the inside bigger than the outside".


Birdseye49
Great box and amazing dovetails.

Thanks Birdseye49!

Oldtool
Very nice work, used the molding planes for lid details, and the all hand work makes this the most appropriate storage box for the planes. Nice looking dovetails too.

Thanks so much Oldtool. It's fun using all hand tools which most of the time I do. And to use tools that I've made makes it all the sweeter. Glad you like my dovetails!

BB1
Wow - very nice storage!

RyanGi
commented about 14 hours ago
Nice!

Thanks Barb and Ryan!
Great work—as always!
Thanks alot Gary. I appreciate it.
Very cool storage box for your homemade planes Rick. All hand work is definitely impressive.

.................. John D....................

You hand cut those 45s?!!!

This is beautiful work!

Petey

Thank you Petey!! Yes.. I hand cut the 45 miters. I always do. Sometimes if needed I do a light, quick pass or two on my shooting board using my jack plane as well.
