Simple Angle (Diamonds) Jig For 3-D Illusion
Simple Angle (Diamonds) Jig For 3-D Illusion Simple Angle (Diamonds) Jig For 3-D Illusion Simple Angle (Diamonds) Jig For 3-D Illusion

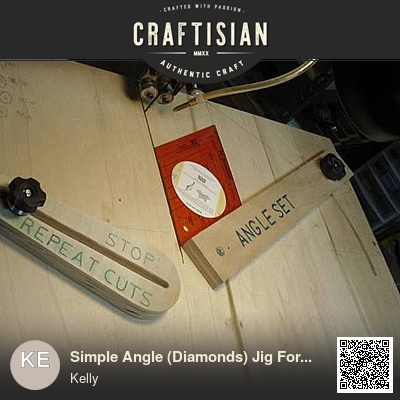

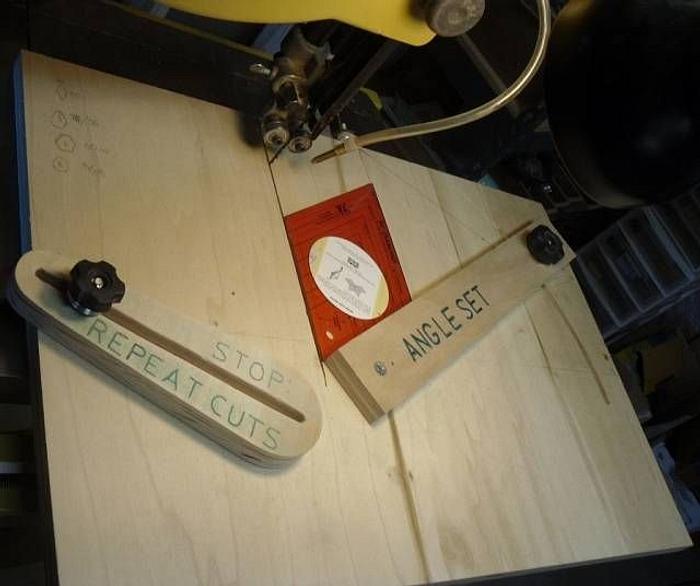

Just a simple jig I made up to get repeat cuts on the band saw for cutting diamonds used to create the optical illusion/3-D effect of surfaces.

Examples of use from a google search:
3-d kelly craig imagination unincorporated jig diamond

3 Comments

Jim Jakosh commented about 3 hours ago
Cool jig and so handy!!!

Cheers, Jim ........................ Variety is the spice of life...............Learn something new every day

SplinterGroup commented about 1 hour ago
Cool!
Rides in the miter slot?
