V- Block Mill Fixture
Recently our guild was asked to make wooden toys for the animals at John Ball Zoo. Among them were some split logs with hollow compartments inside. I needed a V block to hold the half-log while I mill out the center.

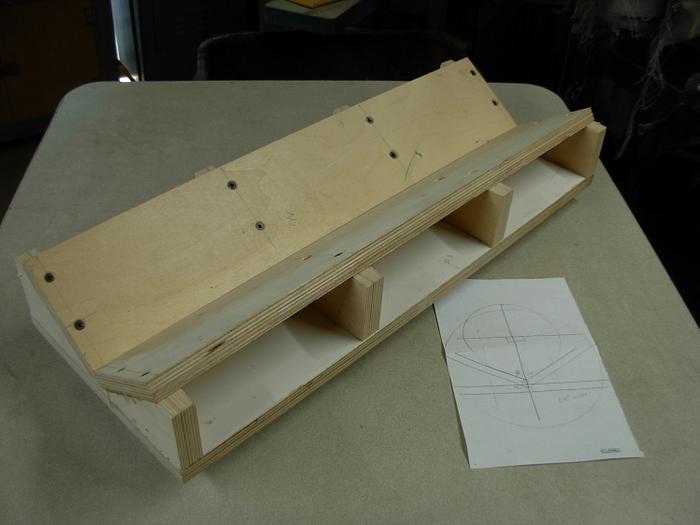

This fixture is made from 5/8", 3/4" and 1" Baltic birch plywood. It is held in the mill vice by the 1" block on the bottom.
I was trying to figure out how to cut the 8 gussets because the angles had to be cut at 55 degrees from the vertical edge and my miter saw only went to 45 degrees. Then I remembered I had the wedge sled and it was piece of cake on there! It was set at 35 degrees off the bottom edge and they all fit perfectly .
No finish on the fixture !
This fixture is made from 5/8", 3/4" and 1" Baltic birch plywood. It is held in the mill vice by the 1" block on the bottom.
I was trying to figure out how to cut the 8 gussets because the angles had to be cut at 55 degrees from the vertical edge and my miter saw only went to 45 degrees. Then I remembered I had the wedge sled and it was piece of cake on there! It was set at 35 degrees off the bottom edge and they all fit perfectly .
No finish on the fixture !
Cheers, Jim ........................ Variety is the spice of life...............Learn something new every day
