*NEW* 1/4" Center Bead Moulding Plane

708
24
In a previous post, I made a Side Bead Moulding Plane, which I use a lot and very much like.

However, I wanted to be able to make beads anywhere and decided to make a "Center Bead  Moulding Plane".

To use it, you scribe a line or pair of lines where on the wood you want the bead with a knife or marking gauge cutter that matches on center across the opening on the Moulding plane's blade.

If you want, you can go over these lines with some Snipe Bill Moulding planes being careful not to go too deep.

You can also clamp a scrap piece of wood as a fence where you want to place the bead and run the moulding plane this way. I use this method.



It produces a nice bead in 3 passes.



I made this plane with side escapement.



Here's what the underside looks
like for the bead profile.

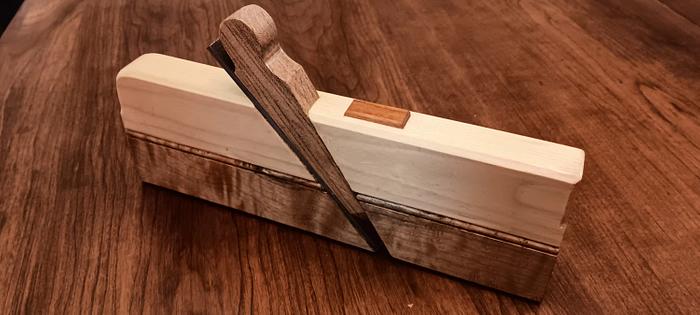

On top, in front of the wedge, It has a strike button inlaid for blade removal. It's made out of Dogwood.
The upper body is Pine and lower is Spalted Maple.
It's assembled by a sliding hand cut dovetail like I've done with some of my other moulding planes.
I've done scratchstock beading to hide parting line between the upper and lower halves. The Spalted Maple was fairly gnarly and yielded some tearout here and there but it's livable.



Thanks for looking!
Cheers!
MrRick

24 Comments

Makes for a nice detail along the inside of an edge, cool!

How carefully do you need to read the grain to minimize tear-out? Seems cutting the wrong direction could quickly tell you, but I don't know if your cutter angle is such that that is a non-issue.
SplinterGroup... with all Moulding planes reading grain direction is very important. Always with the grain is a pretty much a requirement. However a very sharp honed blade will work well in those situations where you can't help going against the grain. Another requirement especially with any curved profile is to have the blade cut on a "spring line". This way the profile curve or shape is cut little at a time with each pass until you reach completed profile. Having a "stop" IMO is mandatory so over cutting doesn't happen and you know when you're done. The plane tells you.
Hope I explained okay.
Results of the cut looks good.   Nice.

Ron

I am seeing it right?  The sides on the beaded groove you show of the underside look like would be pretty fragile.

--Nathan, TX. Hire the lazy man. He may not do as much work but that's because he will find a better way.

Amazing work Rick, this is one sweet beading plane. Very nice, very nice indeed.
I think Lazyman was questioning the boxing on this plane with his fragile comment. What wood did you use for the boxing?
PS: I like the look of the sliding dovetail joint, nice and tight. Great work.
thats some pretty smooth looking cuts rick.

working with my hands is a joy,it gives me a sense of fulfillment,somthing so many seek and so few find.-SAM MALOOF.


987Ron
Results of the cut looks good.   Nice.

Hey thanks Ron!

Lazyman
I am seeing it right?  The sides on the beaded groove you show of the underside look like would be pretty fragile.

Lazyman... it is very important to choose the right wood for the boxing. This is what that piece is made of for strength. Also notice the points have a small flat which negates breakage. So far so good!

Oldtool
Amazing work Rick, this is one sweet beading plane. Very nice, very nice indeed.
I think Lazyman was questioning the boxing on this plane with his fragile comment. What wood did you use for the boxing?
PS: I like the look of the sliding dovetail joint, nice and tight. Great work.

Thank you Oldtool!! It is very sweet. Cuts a bead in no time. And it's very smooth!
I used Dogwood for the boxing. The Janka hardness rating for dogwood is 2150 lbf, indicating its relatively high hardness. This places it among the harder North American hardwoods. Way harder than Maple. Boxwood is harder but I didn't have any.  Regardless... Dogwood does nicely.
I like doing sliding dovetails to join two different kinds of wood. Glad you like it! 👍

Pottz
thats some pretty smooth looking cuts rick.

I can't express enough how satisfying it is to make a couple of passes and see how smooth the bead turns out when finished. And the sound "shhhhhh - shhhhh" is so sweet!  Ya gotta love it!
Another winner Rick. nice job, soon enough you'll have a full set.
Thanks GeorgeWest! I'm not sure what makes a full set but this one makes 11 moulding planes I've made now. I'm fact.. I'm making another box. Each box holds 8.
Rick, do you put a maker's mark on it?

Petey


Petey
Rick, do you put a maker's mark on it?

Petey.... that's a good question. Yes I do. Usually after I've made a post. I'm curious... why do you ask?
Nice Rick, looks great, side bead next?

Splint, you could theoretically go up to cabinet pitch (60 degree) or higher, but when you are making mouldings you would specifically pick straight grained pieces to make it simpler to get a crisp moulding, although you can use a hollow/round if you hit a bit of twitchy grain and need to plane in the opposite direction.
Rick

I have a system of punches i use.

I thought seeing lots of planes all, have makers marks.  I think you should show it. Be nice to see.

Petey


MikeB_UK
commented 40 minutes ago
Nice Rick, looks great, side bead next? .......

Thanks Mike. I've already done a side bead moulding plane and posted it here

Petey
Rick

I have a system of punches i use.

I thought seeing lots of planes all, have makers marks.  I think you should show it. Be nice to see.

Petey... I use some letter punches that I bought from Lee Valley.  I punch my first initial and last name on the heel. Many past makers punched their marks on the toe but there are also many who did so on the heel. I prefer the heel because if spring lines are added on the toe where they always go then placing a makers mark on the toe would be an issue.
Petey.... my makers mark on the heel
