DIY Bow Sander

271
33
I saw a project by RyanGi posted here and at another sight.
This project has been posted on other sites too.

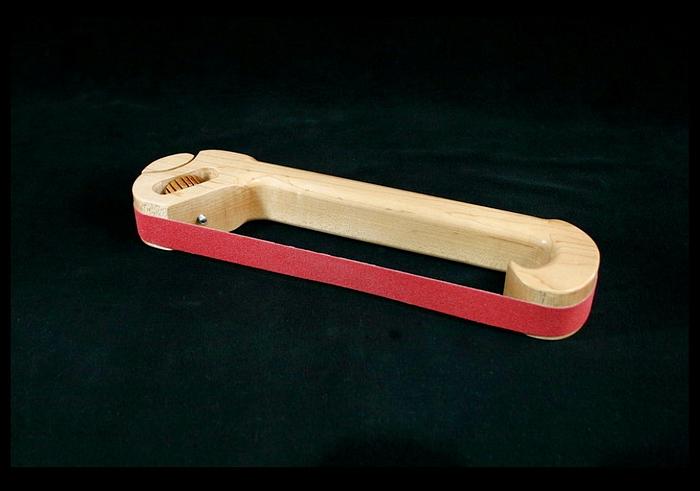

I thought that’s a great sander. I wondered if I could make one that uses a 1” x 20” sanding belt?

Here’s what I came up with.
The saw blade grove is what makes hiding the 1”x20” belt inside the handle possible.


I haven’t included photos of the top tension piece being cut from the top front of the sander on the band saw.

I mentioned 30” sanding belts. That was a typo. The belt size is 1”x 20”. And no LBD I didn’t use a threaded insert. But I did practice some of that Plagiarism stuff.

Thanks for visiting and comments are always welcome.

James McIntyre
